The latest generation with innovative technique and future-oriented design.

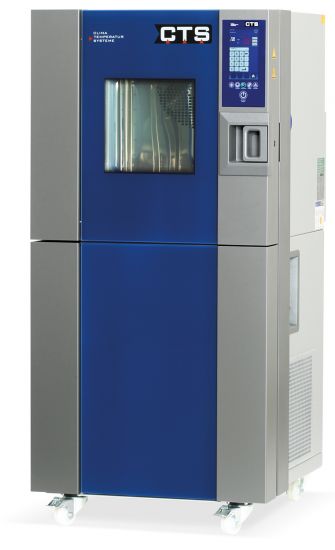

The CTS temperature test cabinets stand out for their high temperature change rates, easy programming via our modern Multi Touch Panel and low noise level.
Thank to our modular device concept, we are sure to find the right device and the appropriate solution for your requirements.
Basic Equipment:
- capacitive Multi-Touch-Display in the front
- defined keys for elementary functions of the installation such as start/stop, fixed-value/automatic operation, interruption, light, etc.
- USB-Connection to save measuring data on USB Stick
- Ethernet-Interface
- 2 Digital Out, to switch test specimen ON/OFF
- adjustable software-temperature-limiter min./max.
- shelf, stainless steel
- entry port Ø 50 mm on the right side
Your benefits:
- low consumption data
- minimum noise level
- user-friendly operation and programming
- uniform operation due to identical Multi-Touch-Display for all chamber sizes
- temperature measuring with Pt 100 in air inlet and air outlet
- service-friendly construction
- international standards are fulfilled (CE-Conformity)
Test space capacity in litres:
- 100 / 200 / 350 / 600 / 1000 / 1500 / 2000
Temperature range:
-
-40 °C / +180 °C
-70 °C / +180 °C
Design:
Control:
Multi-Touch-Display with integrated program controller
Test space:
stainless steel grade 1.4301
Refrigerants:
environmental friendly refrigerants
Main accessories:
- add. entry ports Ø 50 mm, 80 mm and 125 mm
- add. shelves
- panoramic window, multiple glazed, sized 570 x 710 mm; ≥ 200 ltr., incl. LED-Light
- hand-holes in the door
- add. Pt 100 for temperature measuring on test specimen reversible to controller function
- air dryer system
- mobile design
- temperature protection for test specimen
- water cooled refrigeration unit
- CID software for programming and documentation
- variable air speed in the test space
- notch
- Other interfaces: RS232, RS485 and USB
| Type | T -40/100 T -65/100 |
T -40/200 T -70/200 |
T -40/350 T -70/350 |
T -40/600 T -70/600 |
T -40/1000 T -70/1000 |
T -40/1500 T -70/1500 |
|
|---|---|---|---|---|---|---|---|
| Test Space | litres | 100 | 200 | 350 | 600 | 1000 | 1500 |
| Test Space Dimensions in mm | height, appr. width, appr. depth, appr. |
500 500 400 |
750 650 400 |
750 650 720 |
850 850 830 |
900 1000 1100 |
900 1000 1600 |
| Overall Dimensions in mm | height, appr. width, appr. depth, appr. |
1630 770 860 |
1800 920 1345 |
1800 920 1665 |
1900 1120 1875 |
1950 1270 2245 |
1950 1270 2745 |
| Model | standalone unit | ||||||
| Temperature Tests | |||||||
| Temperature Range in °C | T-40/.. T-70/.. |
-40/+180 -65/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
| Temp. Change Rate Cooling acc. IEC 60068-3-5 in K/min | T-40/.. T-70/.. |
6,0 2,5 |
4,0 4,0 |
4,0 3,5 |
3,5 3,0 |
3,0 2,5 |
2,5 2,0 |
| Temp. Change Rate Heating acc. IEC 60068-3-5 in K/min | T-40/.. T-70/.. |
6,0 3,0 |
4,0 4,0 |
3,5 3,5 |
3,5 3,5 |
3,0 2,5 |
3,5 3,5 |
| max. Thermal Load at +20°C in W | T-40/.. T-70/.. |
1400 400 |
3500 3000 |
3500 3000 |
4000 4000 |
4000 4000 |
4000 4000 |
| Temperature Fluctuation in K | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | |
| Nominal Voltage | 230 V +6% -10%, 1/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | |
| Nominal Power in kW | T-40/.., appr. T-70/.., appr. |
3,5 3,0 |
6,0 7,2 |
6,0 7,2 |
7,2 8,7 |
7,4 8,9 |
9,4 10,8 |
| Refrigeration Unit | air cooled | ||||||
| Weight in kg | T-40/.., appr. T-70/.., appr. |
280 300 |
400 450 |
500 550 |
550 600 |
800 850 |
950 1050 |
| Noise level in dB(A) | < 55 | < 58 | < 58 | < 58 | < 58 | < 58 |
All figures are average values which have been obtained at a temperature of +25° C, without test specimens, without thermal load and without options. We reserve the right to make alterations due to technical development.
Other chamber sizes and options on request.
