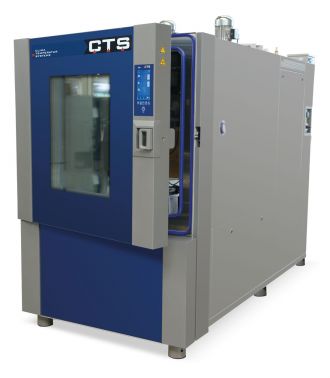

The CTS temperature/climatic stress screening test cabinets can achieve high change rates of up to 30 K/min. with conventional cooling technology thanks to amplified compressors and a strong fan capacity. By this means, CTS offers optimised output with low consumption figures and attractive prices. Thus, the limits of your test item can be determined more quickly. Faster change rates are optionally possible using nitrogen.
Basic Equipment:
- capacitive Multi-Touch-Display in the front
- service-friendly capacitive humidity measurement system
- defined keys for elementary functions of the installation such as start/stop, fixed-value/automatic operation, interruption, light, etc.
- USB-Connection to save measuring data on USB Stick
- Ethernet-Interface
- 2 digital Out, to switch test specimen ON/OFF
- adjustable software-temperature-limiter min./max.
- shelf, stainless steel
- entry port Ø 50 mm on the right side
- single-hand operated door handle, lockable
Your benefits:
- low consumption data
- minimum noise level
- extremely high temperature change rates
- user-friendly operation and programming
- uniform operation due to identical Multi-Touch-Display for all chamber sizes
- demineralized water system with level indicator
- temperature measuring with Pt 100 in air inlet and air outlet
- service-friendly construction
- international standards are fulfilled (CE-Conformity)
Temperature change rates:
- 5 K/min, 10 K/min und 15 K/min
Test space capacity in litres:
- 100 / 200 / 350 / 600 / 1000 / 1500 / 2000
Temperature range:
-
-40 °C / +180 °C
-70 °C / +180 °C
Design:
Control:
Multi-Touch-Display with integrated program controller
Test space:
stainless steel grade 1.4301
Refrigerants:
environmental friendly refrigerants
Humidity system (only type CS):
capacitive measuring
Options:
- add. Entry ports Ø 50 mm, 80 mm und 125 mm
- add. shelves
- panoramic window, multiple glazed, sized 570 x 710 mm, < 200 ltr., incl. LED-light
- hand-holes in the door
- add. Pt 100 for temperature measuring on test specimen reversible to controller function
- air dryer system
- mobile design
- air/water cooled refrigeration unit
- temperature protection for test specimen
- CID software for programming and documentation
- variable air speed in the test space
- notch
- Other interfaces: RS232, RS485 and USB
Type 5K/min
| Type | -70/100-5 |
-40/200-5 -70/200-5 |
-40/350-5 -70/350-5 |
-40/600-5 -70/600-5 |
-40/1000-5 -70/1000-5 |
-40/1500-5 -70/1500-5 |
|
|---|---|---|---|---|---|---|---|
| Test Space | litres | 100 | 200 | 350 | 600 | 1000 | 1500 |
| Test Space Dimensions in mm | height, appr. width, appr. depth, appr. |
500 500 400 |
750 650 400 |
750 650 720 |
850 850 830 |
900 1000 1100 |
900 1000 1600 |
| Overall Dimensions in mm | height, appr. width, appr. depth, appr. |
1630 770 860 |
1800 920 1345 |
1800 920 1665 |
1900 1120 1875 |
1950 1270 2245 |
1950 1270 2745 |
| Temperature Tests | |||||||
| Temperature Range in °C | TS -40/..., CS -40/... TS -70/..., CS -70/... |
-70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
| Temp. Change Rate Cooling acc. IEC 60068-3-5 in K/min | TS -40/..., CS -40/... TS -70/..., CS -70/... |
8,0 |
5,0 5,0 |
5,0 5,0 |
6,0 7,0 |
5,0 5,0 |
5,0 5,0 |
| Temp. Change Rate Heating acc. IEC 60068-3-5 in K/min | TS -40/..., CS -40/... TS -70/..., CS -70/... |
6,0 |
8,0 8,0 |
8,0 8,0 |
6,0 6,0 |
6,0 6,0 |
5,0 5,0 |
| max. Thermal Load at +20°C in W | TS -40/..., CS -40/... TS -70/..., CS -70/... |
3500 |
3500 3500 |
3500 3500 |
4500 5000 |
5200 5200 |
5000 5500 |
| Temperature Fluctuation in K | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | |
| Climatic Tests | |||||||
| Temperature Range in °C | CS -40/..., CS -70/... | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 |
| Humidity Range in % RH | CS -40/..., CS -70/... | 10 to 98 | 10 to 98 | 10 to 98 | 10 to 98 | 10 to 98 | 10 to 98 |
| Dew Point Range I in °C | CS -40/..., CS -70/... | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 |
| Dew Point Range II in °C | CS -40/..., CS -70/... | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C |
| Humidity Fluctuation I in % RH | CS -40/..., CS -70/... | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 |
| Humidity Fluctuation II in % RH | CS -40/..., CS -70/... | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 |
| Temperature Fluctuation in K | CS -40/..., CS -70/... | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 |
| Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | ||||||
| Nominal Power in kW | TS -40/.., appr. CS -40/.., appr. TS -70/.., appr. CS -70/.., appr. |
6,5 |
9,3 10,4 12,0 12,0 |
9,3 10,4 11,8 11,8 |
11,0 12,1 14,2 14,2 |
13,3 13,2 16,4 16,4 |
13,2 13,2 16,1 16,1 |
| Refrigeration Unit | air cooled | air cooled | air cooled | water cooled | water cooled | water cooled | |
| Weight in kg | TS -40/..., CS -40/..., appr. TS -70/..., CS -70/..., appr. |
300 |
500 550 |
600 600 |
700 750 |
850 900 |
1000 1100 |
| Noise level in dB(A) | < 60 | < 58 | < 58 | < 62 | < 62 | < 64 |
Type 10K/min
| Type | -70/100-10 |
-40/200-10 -70/200-10 |
-40/350-10 -70/350-10 |
-40/600-10 -70/600-10 |
-40/1000-10 -70/1000-10 |
-40/1500-10 -70/1500-10 |
|
|---|---|---|---|---|---|---|---|
| Test Space | litres | 100 | 200 | 350 | 600 | 1000 | 1500 |
| Test Space Dimensions in mm | height, appr. width, appr. depth, appr. |
500 500 400 |
750 650 400 |
750 650 720 |
850 850 830 |
900 1000 1100 |
900 1000 1600 |
| Overall Dimensions in mm | height, appr. width, appr. depth, appr. |
1630 770 860 |
1800 920 1345 |
1800 920 1665 |
1900 1120 1875 |
1950 1270 2245 |
1950 1270 2745 |
| Temperature Tests | |||||||
| Temperature Range in °C | TS -40/..., CS -40/... TS -70/..., CS -70/... |
-70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
| Temp. Change Rate Cooling acc. IEC 60068-3-5 in K/min | TS -40/..., CS -40/... TS -70/..., CS -70/... |
10,0 |
10,0 11,0 |
10,0 10,0 |
10,0 10,0 |
10,0 10,0 |
10,0 10,0 |
| Temp. Change Rate Heating acc. IEC 60068-3-5 in K/min | TS -40/..., CS -40/... TS -70/..., CS -70/... |
10,0 |
12,0 12,0 |
10,0 10,0 |
10,0 10,0 |
10,0 10,0 |
10,0 10,0 |
| max. Thermal Load at +20°C in W | TS -40/..., CS -40/... TS -70/..., CS -70/... |
2000 |
5000 4000 |
5000 5000 |
7000 5000 |
8000 7500 |
8000 8000 |
| Temperature Fluctuation in K | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | |
| Climatic Tests | |||||||
| Temperature Range in °C | CS -40/..., CS -70/... | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 |
| Humidity Range in % RH | CS -40/..., CS -70/... | 10 to 98 | 10 to 98 | 10 to 98 | 10 to 98 | 10 to 98 | 10 to 98 |
| Dew Point Range I in °C | CS -40/..., CS -70/... | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 |
| Dew Point Range II in °C | CS -40/..., CS -70/... | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C |
| Humidity Fluctuation I in % RH | CS -40/..., CS -70/... | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 |
| Humidity Fluctuation II in % RH | CS -40/..., CS -70/... | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 |
| Temperature Fluctuation in K | CS -40/..., CS -70/... | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 |
| Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | ||||||
| Nominal Power in kW | TS -40/..., ca. CS -40/..., ca. TS -70/..., ca. CS -70/..., ca. |
7,5 |
13,4 14,5 16,6 16,6 |
13,4 13,4 16,6 16,6 |
15,5 15,5 13,0 13,0 |
20,9 20,9 15,4 15,4 |
20,9 20,9 20,2 20,2 |
| Refrigeration Unit | air cooled | water cooled | water cooled | water cooled | water cooled | water cooled | |
| Weight in kg | TS -40/..., CS -40/..., appr. TS -70/..., CS -70/..., appr. |
350 |
600 650 |
700 750 |
800 900 |
1000 1000 |
1150 1300 |
| Noise level in dB(A) | < 60 | < 62 | < 62 | < 62 | < 65 | < 70 |
Type 15K/min
| Type | -70/200-15 |
-40/280-15 |
-70/350-15 |
-40/500-15 -70/500-15 |
-40/810-15 -70/810-15 |
-40/1250-15 -70/1250-15 |
|
|---|---|---|---|---|---|---|---|
| Test Space | litres | 200 | 280 | 350 | 500 | 810 | 1250 |
| Test Space Dimension in mm | height, appr. width, appr. depth, appr. |
750 650 400 |
720 650 615 |
750 650 720 |
820 850 725 |
870 1000 900 |
870 1000 1400 |
| Overall Dimensions in mm | height, appr. width, appr. depth, appr. |
1800 920 1345 |
2080 920 2165 |
1800 920 1665 |
2170 1120 2375 |
2230 1270 2645 |
2230 1270 3142 |
| Temperature Tests | |||||||
| Temperature Range in °C | TS -40/..., CS -40/... TS -70/..., CS -70/... |
-70/+180 |
-40/+180 |
-70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
-40/+180 -70/+180 |
| Temp. Change Rate Cooling acc. IEC 60068-3-5 in K/min | TS -40/..., CS -40/... TS -70/..., CS -70/... |
15,0 |
19,0 |
15,0 |
15,0 15,0 |
15,0 15,0 |
15,0 15,0 |
| Temp. Change Rate Heating acc. IEC 60068-3-5 in K/min | TS -40/..., CS -40/... TS -70/..., CS -70/... |
15,0 |
16,0 |
15,0 |
15,0 15,0 |
15,0 15,0 |
15,0 15,0 |
| max. Thermal Load at +20°C in W | TS -40/..., CS -40/... TS -70/..., CS -70/... |
5000 |
5000 |
6000 |
7000 8000 |
8000 8000 |
8000 8000 |
| Temperature Fluctuation in K | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | |
| Climatic Tests | |||||||
| Temperature Range in °C | CS -40/..., CS -70/... | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 | +10 to +95 |
| Humidity Range in % RH | CS -40/..., CS -70/... | 10 to 98 | 10 to 95 | 10 to 98 | 10 to 95 | 10 to 95 | 10 to 95 |
| Dew Point Range I in °C | CS -40/..., CS -70/... | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 | +7 to +94 |
| Dew Point Range II in °C | CS -40/..., CS -70/... | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C | -10 to +7 °C |
| Humidity Fluctuation I in % RH | CS -40/..., CS -70/... | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 | ≤± 1,5 |
| Humidity Fluctuation II in % RH | CS -40/..., CS -70/... | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 | ≤± 3 |
| Temperature Fluctuation in K | CS -40/..., CS -70/... | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 | ≤± 0,3 |
| Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | ||||||
| Nominal Power in kW | TS -40/..., appr. CS -40/..., appr. TS -70/..., appr. CS -70/..., appr. |
17,0 |
15,1 15,1 |
20,4 18,3 |
24,4 24,4 25,6 25,6 |
23,7 23,7 27,3 27,3 |
30,8 30,8 38,1 38,1 |
| Refrigeration Unit | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | |
| Weight in kg | TS -40/..., CS -40/..., appr. TS -70/..., CS -70/..., appr. |
650 |
800 |
750 |
800 1000 |
1100 1800 |
1350 1500 |
| Noise level in dB(A) | < 62 | < 63 | < 62 | < 68 | < 73 | < 73 |

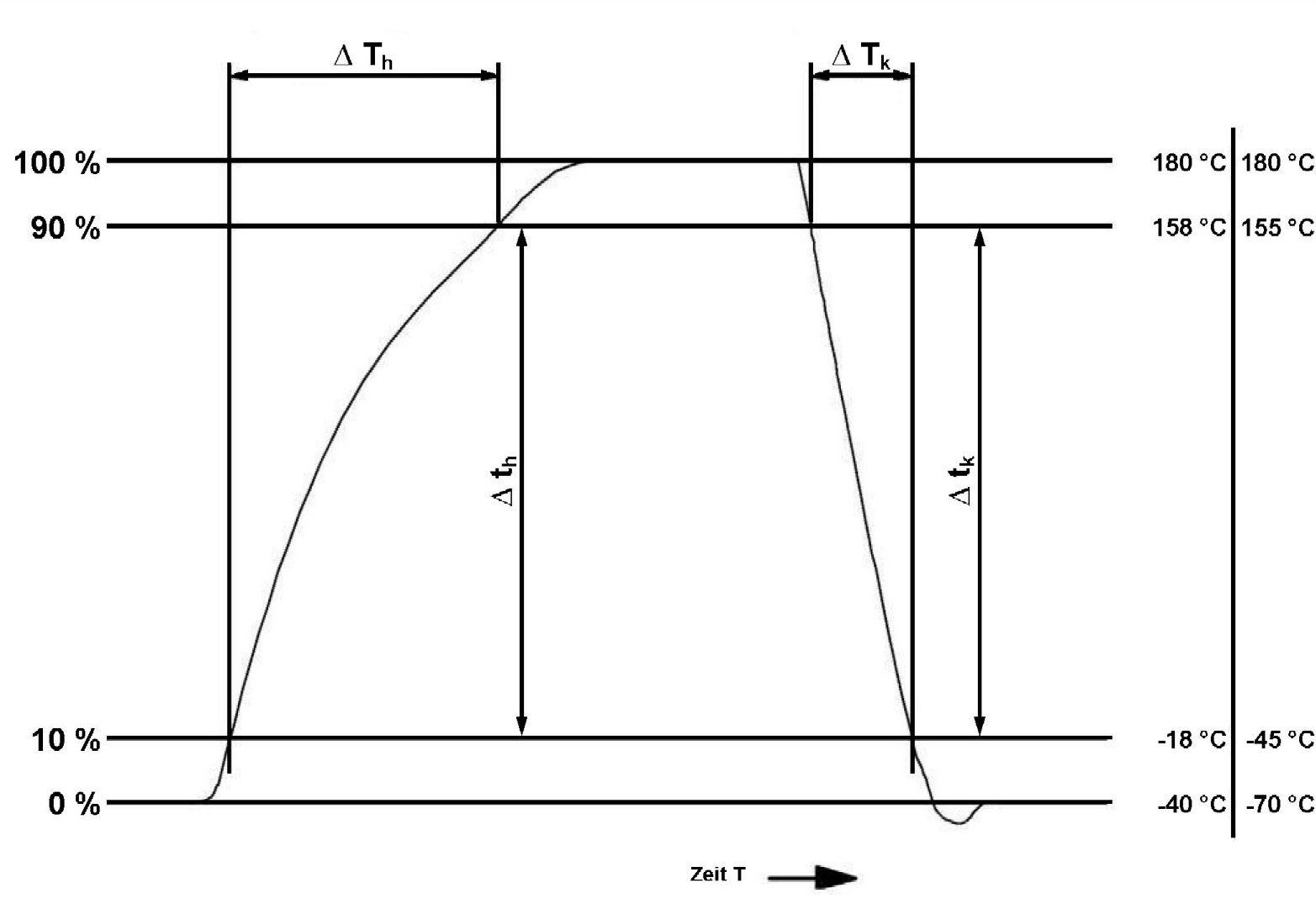

Temperature Change Rate acc. IEC 60068-3-5:
heating = Δ th / Δ Th
cooling = Δ tk / Δ Tk
Δ Th = time of heating
Δ Tk = time of cooling
Δ th = temperature difference, heating
Δ tk = temperature difference, cooling
All figures are average values which have been obtained at a temperature of +25° C, without test specimens, without thermal load and without options. We reserve the right to make alterations due to technical development.
Other chamber sizes and options on request.
