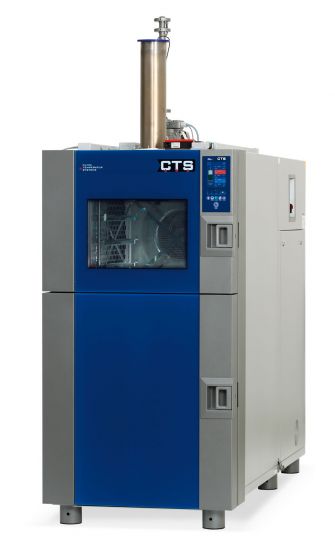

The innovative technology of our CTS temperature shock test cabinets allow temperature changes up to 100 K/min. The most common national and international standards (DIN, IEC, MIL) are met. The compressed-air dryer system used as a standard allows up to 3000 test cycles without defrosting.
Basic Equipment:
- capacitive Multi-Touch-Display in the front
- defined keys for elementary functions of the installation such as start/stop, fixed-value/automatic operation, interruption, light, etc.
- USB-Connection to save measuring data on USB Stick
- Ethernet-Interface
- door with window, incl. LED-lightg
- 2 digital Out, to switch test specimen ON/OFF
- shelf, stainless steel
- entry port, size depending on chamber type
- single-hand operated door handle, lockable
- temperature cycling in cold chamber (32, 66, 130 Litre)
- eco-mode to save energy costs
- air dryer system to avoid freezing in long-time testing
Your benefits:
- low consumption data
- minimum noise level
- user-friendly operation and programming
- uniform operation due to identical Multi-Touch-Display for all chamber sizes
- temperature measuring with Pt 100 in air inlet and air outlet
- service-friendly construction
- international standards are fulfilled (CE-Conformity)
- compact design with small installation area
Test space capacity in litres:
- 32 / 66 / 133 / 350
Temperature range:
-
+50 °C / +220 °C
-80 °C / +100 °C
Design:
Control:
Multi-Touch-Display with integrated program controller
Test space:
stainless steel grade 1.4301
Refrigerants:
environmental friendly refrigerants
Options:
- add. shelves and protection for the basket
- increased temperature range in hot chamber to +250°C (for 130 ltr.)
- temperature protection for test specimen
- add. Pt 100 for temperature measuring on test specimen
- CID software for programming and documentation
- water cooled refrigeration unit for TSS-70/32 and TSS-70/66
- air cooled refrigeration unit for TSS-70/130 and TSS-70/350
- add. entry ports
- higher test load
- separate machine unit, incl. control unit (350 ltr.)
- other interfaces: RS232, RS485 and USB
| Type | TSS -70/32 | TSS -70/66 | TSS -70/130 | TSS -70/350 | |
|---|---|---|---|---|---|
| Test Space | litres | 32 | 66 | 130 | 350 |
| Test Space Dimensions in mm | height, appr. width, appr. depth, appr. |
300 360 300 |
300 420 525 |
410 480 660 |
610 850 680 |
| Overall Dimensions in mm | height, appr. width, appr. depth, appr. |
1820 (2415*) 820 1325 |
1820 (2415*) 880 1550 |
1820 (2525*) 940 2335 |
2450 (3200*) 2160 (2300**) 2200 |
| Temperature Tests | |||||
| Temperature Range in °C | hot chamber cold chamber |
+50/+220 -80/+100 |
+50/+220 -80/+100 |
+50/+220 -80/+100 |
+50/+220 -80/+100 |
| Adaption time of IC´s < 15 min in kg | 2,5 | 2,5 | 12,0 | 25,0 | |
| Changing Time in sec. | < 10 | < 10 | < 10 | < 10 | |
| Test Load in kg, max. | 10 | 22 | 50 | 110 | |
| Temperature Fluctuation in K | temporally | ± 1 | ± 1 | ± 1 | ± 1 |
| Nominal Voltage | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | 400 V +6% -10%, 3/N, 50 Hz | |
| Nominal Power in kW | appr. | 9 | 9 | 19 | 38 |
| Refrigeration Units | air cooled | air cooled | water cooled | water cooled | |
| Weight Cabinet in kg | appr. | 650 | 750 | 1000 | 2500 |
| Noise Level in dB(A) | 58 | 58 | 60 | 68 | |
| Entry Ports Ø in mm | 50 | 80 | 125 | 125 |
All values are in average which have been obtained at a temperature of +25° C, without test specimens, without thermal load and without options.
* = height with spindle
** = width with spindle drive
We reserve the right to make alterations due to technical development.
Other chamber sizes and options on request.
